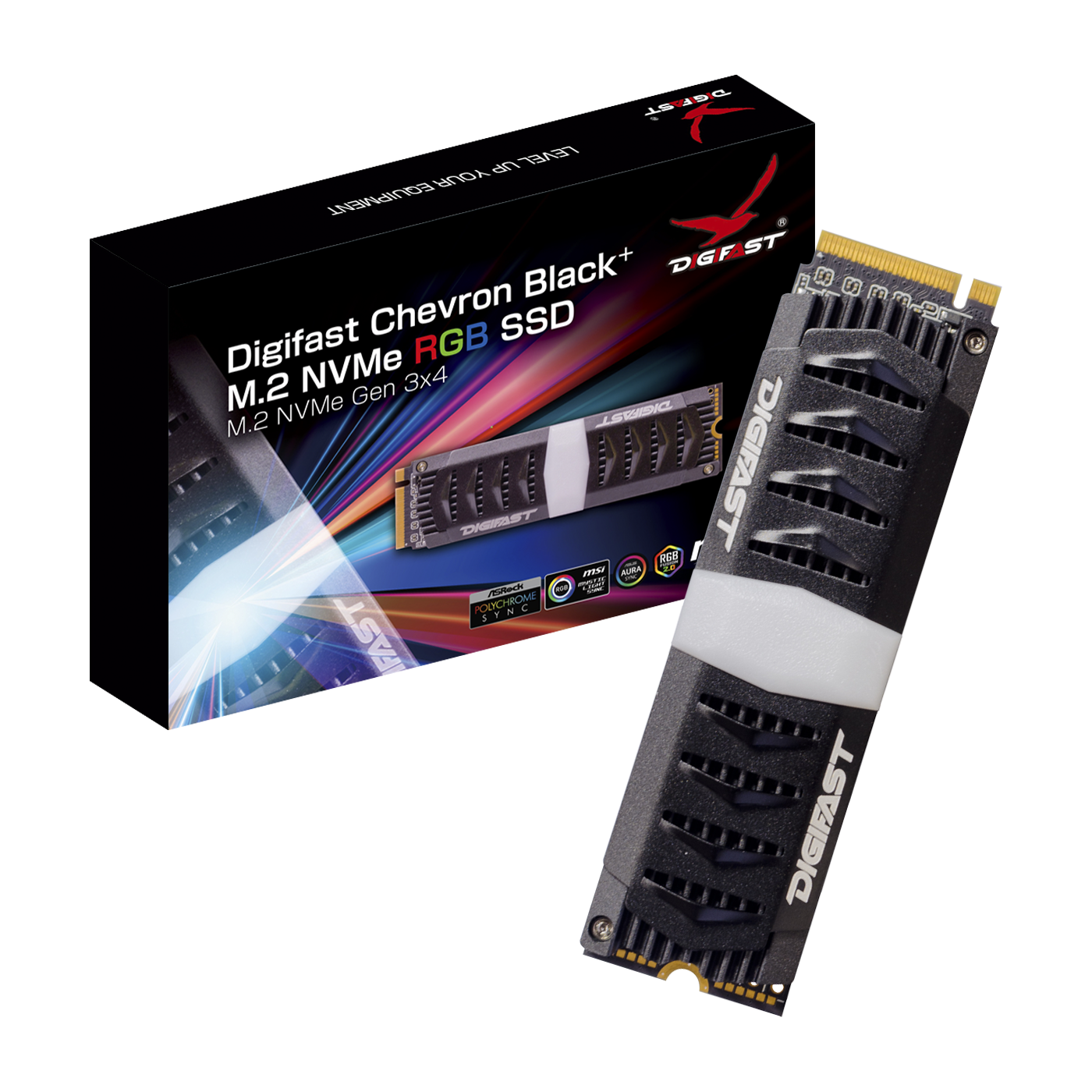

Digifast Chevron M.2 NVMe RGB SSD - Gen3x4 PCIe, M.2 2280, SMART Monitoring
Click to enlarge

Digifast Chevron M.2 NVMe RGB SSD - Gen3x4 PCIe, M.2 2280, SMART Monitoring Digifast Chevron M.2 NVMe RGB SSD - Gen3x4 PCIe, M.2 2280, SMART Monitoring

$91.99 USD
SKU: DGFARGB1TM2CN3



Gamer’s First Choice for Blazing Speeds

Digifast Chevron M.2 NVMe RGB SSD



M.2 2280
Form Factor

Power by Phison
PS5012-E12/E12C

RGB LED


Up to 3470MB/s Read

Up to 3000MB/s Write


1.8 million hours (MTBF)

Power by Toshiba BiCS3 NAND

5 years limited warranty


Selection up to 2TB


First Choice for M.2 NVMe PCIe

Unmatched Reliability
Special bad block management capability allows for long-term reliability.
TRIM capability frees unused blocks of data to achieve greater efficiency.

Incredible Speed Performance
Powered by Toshiba BiCS3 NAND and the Phison PS5012-E12/E12C
controller for amazing and reliable speed.
Speeds are over 5 times faster when compared to SATA SSD.

Intelligent Design
Features such as predict & fetch and over provision
keep the data flowing constantly and consistently.

Better Performance for PCs and Laptops
Welcome to the next generation form factor. M.2 is a small form factor that fits perfectly in PCs and laptops. M.2 SSDs utilize the high-speed PCIe bus to achieve record read and write speeds. You can easily install the SSD to enjoy enhanced performance.

LED Effect Control
Supports RGB LED control chip and can control.RGB LED effect mode by using
RGB FUSION2.0 (Z390 AORUS series and X299 AORUS MASTER Supported)

Five Year Limited Warranty
Upgradable Warranty Service
5 years limited or TBW warranty, based on the first expiration
Digifast Chevron M.2 NVMe RGB SSD Series
256GB - 5 years limited or 150 TBW 512GB - 5 years limited or 300 TBW
1TB - 5 years limited or 600 TBW 2TB - 5 years limited or 1200 TBW





Basic Specs

TypeInternal
BrandDigifast
IntendedGamer
Capacity1024 GB
Sequential Read Speed (MB/s)3470
Sequential Write Speed (MB/s)3000
Random Read Speed (IOPS)600,000
Random Write Speed (IOPS)600,000
TBW (Terabytes Written)1665
Built-in SLC Cache24GB
RGB Color3 LED frontside 10 LED backside
NAND TypeToshiba BiCS3 TLC NAND flash



Dimensions and Form

Physical Dimensions (mm)80x22x2
Weight (ounces)0.63
Form FactorM.2 2280
ProtocolNVMe
CompliancePCIe 3.1 / NVMe 1.3



Temperature

Operating Temp 0°C to 70°C
Storage Temp-40°C to 80°C



Reliability

Mean time between failure (MTBF) 1.8 Million hours
Warranty5 year



Testing

Shock Acceleration Force: 1500G
VibrationFrequency/Displacement 20Hz-80Hz/1.52mm - Frequency/Acceleration 80Hz-2000Hz/20G
DropHeight of Drop 80cm free fall - Number of Drop 6 face of each unit
BendingForce ≥ 20N Action Hold 1min/5 times



Power Specs

Operating Voltage Min = 3.14V Max = 3.47V
Rise time (Max/Min)100 ms/0.1ms
Fall time (Max/Min)5s/1s
Power ConsumptionIdle < 910 mW, L1.2 < 2 mW



Features

Error Correction Algorithm (ECC) Low density parity check with each read operation protecting against data corruption
Wear LevelingAll solid state drives have a limited number of program/erase cycles. This feature will read and write to the entire SSD evenly maximizing the lifespan.
Bad Block ManagementIf a sector goes bad, the SSD will automatically reroute the address to a different sector allowing users to get the full use of their SSD.
TRIMUnlike HDD, SSDs cannot overwrite data. With TRIM, the SSD will remove unused data allowing for write operations to happen right away.
SMARTSelf monitoring analysis and reporting technology keeps a record of the health of the SSD and notifies the user of an issues further improving data reliability.
Over-ProvisionOn top of the advertised capacity, there is extra NAND available for internal write operations. This saves wear on the SSD increasing the lifespan of the SSD
Media Wear IndicatorWhen the SSD approaches the end of its lifecycle (5+ years), the user will be notified ahead of time allowing time for safe replacement.
Predict & FetchPredict and fetch intelligently predicts the operating systems next command and retrieves the data ahead of time thus increasing the speed

**For more detail on the specs sheet please contact info@digifast-usa.com

Q1. Will this product work with any PC or laptop?

Our SSD drives use the NVMe protocol. So long as your computer or laptop’s motherboard supports this type of drive, you should have no issues. If you would like to make sure, please provide the spec detail of your motherboard or laptop and our expert staff will advise you through e-mail.

Q2. Do I require a heatsink for this SSD?

No, a heatsink is not mandatory.

Q3. What is TRIM?

TRIM is a feature that efficiently manages the unused space within an SSD, which improves the performance of read & write commands.

Q4. What is MTBF?

MTBF stands for “Mean Time Between Failure” and indicates the longevity of the SSD.

Q5. Are these SSDs compatible with the early 2012 Macbook Air?

The Macbook Airs and Macbook Retinas all use apple proprietary SSDs that are not upgradable with 3rd party drives.

Q6. Do the SSDs use TLC?

Our SSDs use Toshiba BiCS3 TLC NAND flash.

Q7. How bright are the LEDs on the RGB SSD?

13 LED work harmoniously to shine in low to mid light setting.

Q8. Device does not show in BIOS

M.2 slots can use either SATA or NVMe protocols. Double check your motherboard’s manual to ensure that NVMe drives are indeed supported. Also, ensure that your motherboard is showing EFI boot options. If your motherboard defaults to Legacy, then the drive may not appear.

Q9. M.2 device shows up in BIOS, but Windows is unable to recognize.

1. Check to make sure the M.2 device is set is the primary boot device. (Enter BIOS according to motherboard manual, look for boot order, change first entry to the M.2 device). 2. The second option is to boot up Windows. Open the disk management tool. Select the M.2 device, right-click and look for initialize option. This will give the device a partition table and add an NTSF partition. Afterwards, Windows should be able to recognize.

Q10. How did you measure your SSD speed?

Performance benchmark is measure in following condition:
CrystalDiskMark 5.1.2, 1GB range, QD=32, Thread=1
IOMeter, 1GB range, 4K data size, QD=32 (3) ATTO, transfer size 8192KB.

Q11. What is predict and fetch?

Predict & Fetch improves the read speed. When the host issues sequential read commands to the PCIe SSD, the PCIe SSD will automatically expect that the following will also be read commands. Thus, before receiving the next command, flash has already prepared the data.

Q12. Why does the 2 TB drive have fewer IOPS than the 1 TB drive?

The 2 TB drive is comprised of four 512 GB die packages whereas the 1 TB uses four 256 GB die packages. The larger memory has a slightly longer propagation time and hence, fewer IOPS.
